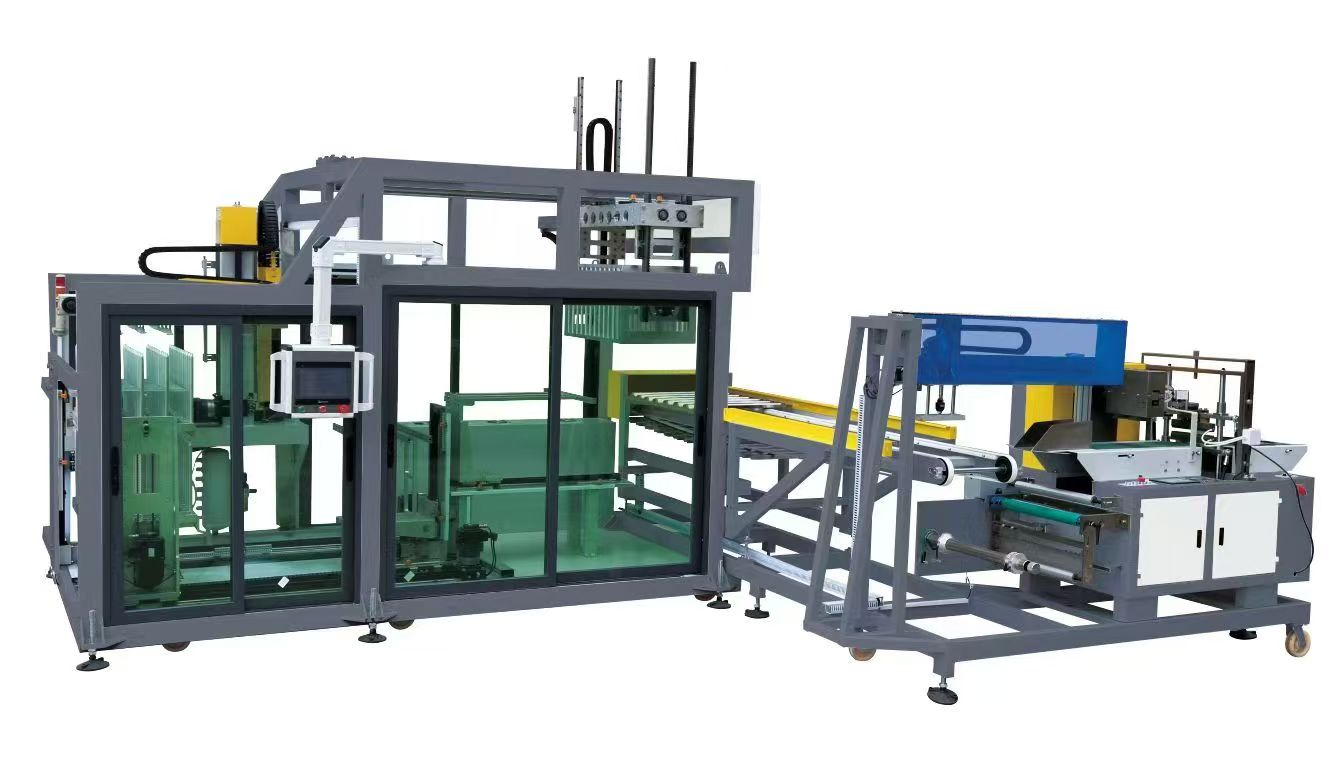

FULLY AUTOMATIC CUP STACKING MACHINE
| 名称Name | 单位Unit | 数量Quantity | 规格Specification | |
全自动堆叠Fully automatic stacking | 吸干drying | 条strips | 5 | |
吸嘴suction nozzles | 个piece | 10 | ||
接头 connectors | 个piece | 10 | ||
m6气管三通M6 tracheal tee | 个piece | 10 | ||
m6直通 M6 through | 个piece | 10 | ||
接近开关Proximity switch | 条strips | 3 | ||
电磁阀4′ 4 ‘solenoid valves | 个piece | 1 | ||
电磁阀2′2 ‘solenoid valves | 个piece | 1 | ||
真空发生器Vacuum generator | 套set | 2 | 带消声器 with muffler |
Description
编号No. | 部件，名称 components, name | 规格，品牌 specifications, brand |
1 | 机器重量Machine weight | （3500公斤） |
2 | 传动同步带drive synchronous belt | 麦高迪McGovery |
3 | 电器品牌Electrical brand | 欧姆龙Omron |
4 | 机架材料Rack material | 碳钢方管 Carbon steel square tube |
5 | 机器外包板 machine outsourcing board | 1.2mm |
6 | 操控触摸屏control touch screen | 10寸台湾威轮10 inch Taiwan Weilun |
7 | 编程控制PLC Programming Control PLC | 禾川系统总线 HCFA System Bus |
8 | 电源供给power supply | 380VAC,50Hz ,三相，380VAC, 50Hz, three-phase, |
9 | 电气图纸Electrical Drawing | DWG格式 DWG Format |
10 | 电磁阀品牌Electromagnetic valve brand | 亚德客 |
11 | 真空发生器品牌 Vacuum Generator Brand | P新洋 |
12 | 24V直流电源控制 24V DC power supply control OMRON | OMRON |
13 | 光电开关Optoelectronic switch | 欧姆龙 OMRON |
14 | 接触器Contactor | 施耐德 Schneider |
15 | 主断路器 Main circuit breaker | 施耐德 Schneider |
16 | 继电器relay | OMRON |
17 | 按钮开关 button switch | 施耐德 Schneider |
18 | 抓杯升降伺服电机 cup lifting servo motor | 禾川1.5Kw 1套 HCFA 1.5Kw 1 set |
19 | 抓杯平移伺服电机 cup grabbing translation servo motor | 禾川3.0Kw 1套 HCFA 3.0Kw 1 set |
20 | 旋转伺服电机rotary servo motor | 禾川1.0Kw 1套 HCFA 1.0Kw 1 set |
21 | 旋转升降伺服电机 Rotating lifting servo motor | 禾川1.0Kw 1套 HCFA 1.0Kw 1 set |
22 | 旋转移动伺服电机 Rotating Mobile Servo Motor | 禾川750w 1套 HCFA 750w 1 set |
25 | 抬杯伺服电机 cup lifting servo motor | 禾川750w 1套 HCFA 750w 1 set |
26 | 顶杯伺服电机 cups servo motor | 禾川750w 1套 HCFA 750w 1 set |
27 | 出杯伺服电机 cup output servo motor | 禾川750w 1套 HCFA 750w 1 set |
28 | 链板伺服电机 chain plate servo motor | 禾川750w 1套 HCFA 750w 1 set |
29 | 推杯装置 cup pushing device | 禾川750w 1套 HCFA 750w 1 set |
30 | 高精度旋转90度减速机high-precision rotating 90 degree reducer | 台湾台诚 Taiwan Taicheng |
31 | 抓取高精度弧形减速机 Grab high-precision arc reducer | 台湾台诚 Taiwan Taicheng |
32 | 伸缩减速机telescopic reducer | 台湾新宝 Taiwan Xinbao |
33 | 自动推杯装置 automatic cup pushing device | 包含推杯输送链板 includes a cup pushing conveyor chain plate |
34 | 机身颜色机架白色，门板黄色body color: rack white, door panel yellow. | 甲方可定制门板颜色 Party A can customize the color of the door panel Fully automatic stacking of random accessories |
