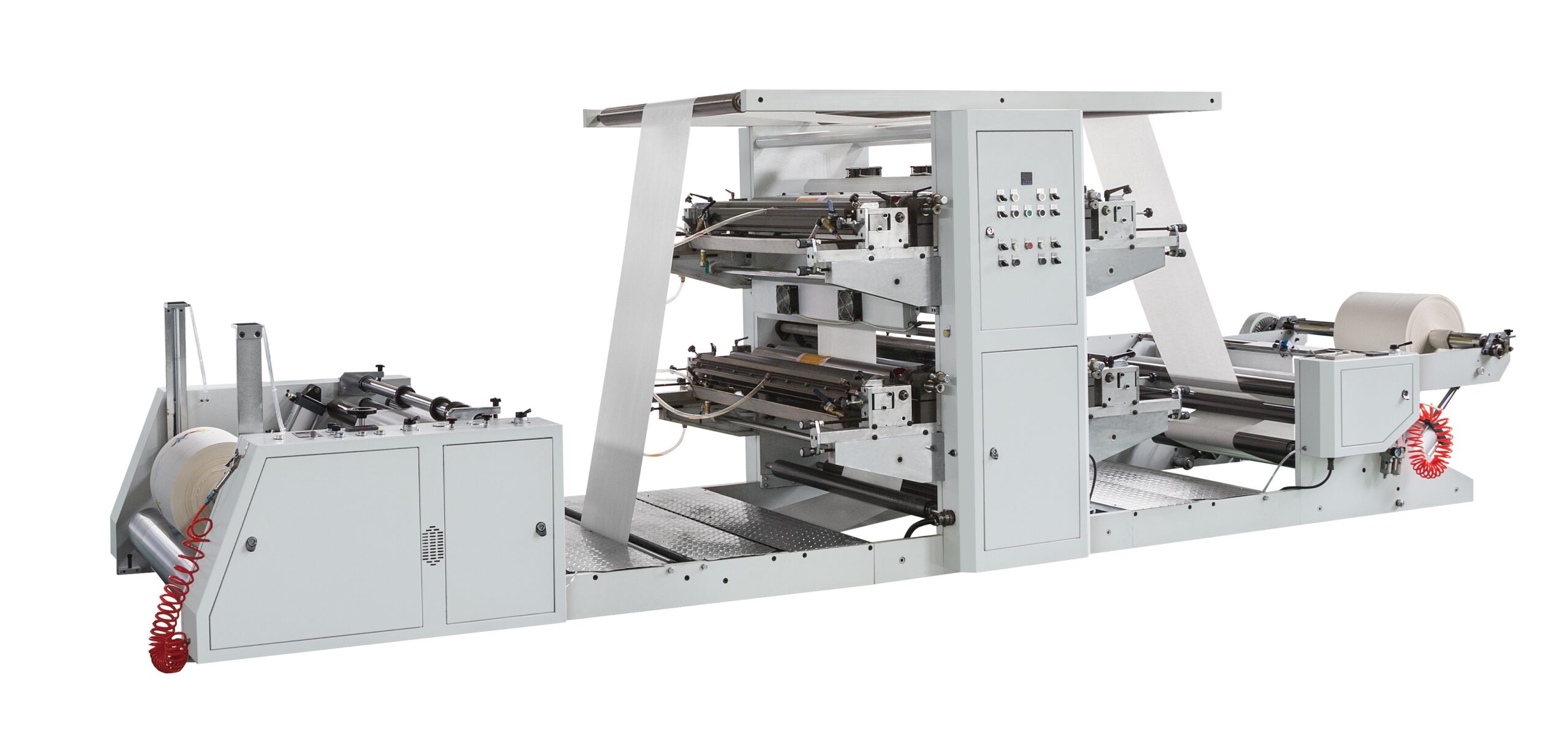

Flexible letterpress printing machine
- The machine adopts hard tooth surface gear helical gears, smooth operation, low noise, high accuracy and long life.
- Ink-ring sealed scraping knife scraping.
- Ink Ceramic Anilox roller, high speed dot rate, screen printed layered, stronger.
- Button-360 ° continuous and adjustable longitudinal register device.
- Pneumatic automatic printing plate roller.
- The independent group automatic ink system, can be opened one or more sets of ink.
- Automatic lubricating oil system
Description
Description
| Printing Color | 4 Color |
| Max.Printing Width | 1100 mm |
| Max.Material width | 1130 mm |
| Printing Length | 180-800 mm |
| Max.Printing Speed | 120 m/min |
| Paper Thickness | 30-350 gsm |
| Overprint Precision | ±0.15 mm |
| Thickness of Plate | 1.7 mm |
| Total Power | 10 kw |
| weight | 3100kg |
| Overall Dimension | 565*176*185cm |
