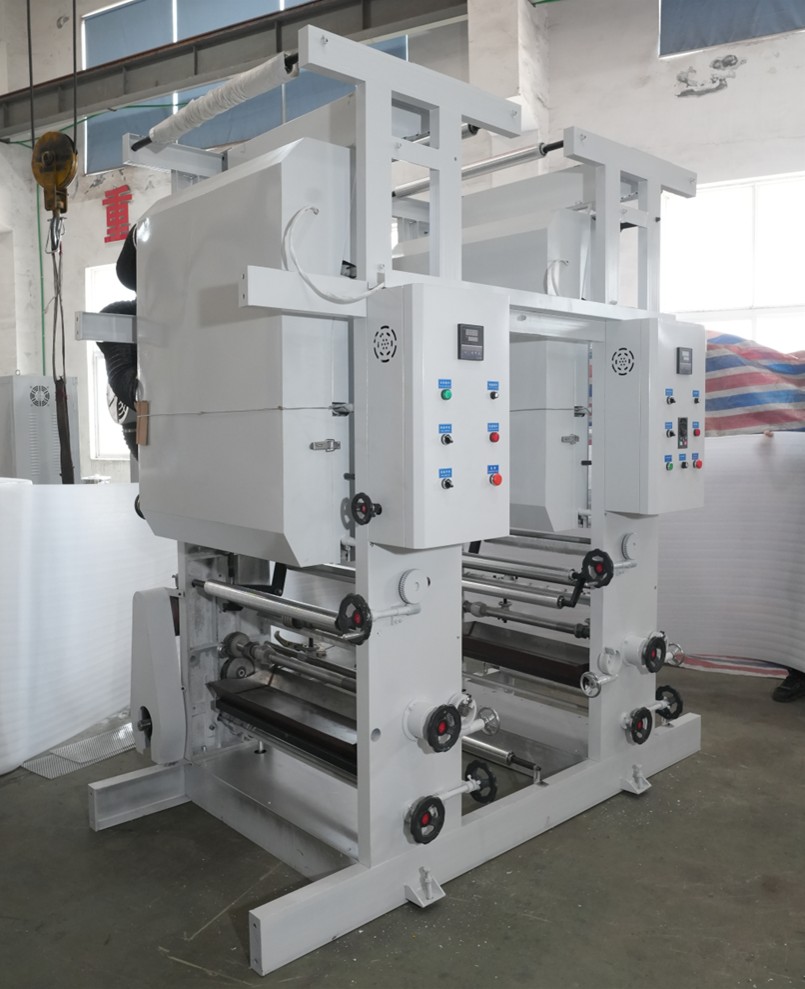

ONE COLOR INTEGRATED PRINTING MACHINE
Description
Description
| FEATURE
FOR 700 gravure |
Color number | 1 color |
| Color deck | 1 group | |
| Printing width | 700mm | |
| Film passing width | 600mm | |
| Printing length | 240-750mm | |
| Printing Speed | 10-50m/min | |
| Registration accuracy | 0.25mm | |
| Voltage | 380V, 50HZ, 3PHASE | |
| Total power | ~9 Kw | |
| Dimensions (LxWxH) | ~1000*1700*1900mm | |
| Weight | ~500Kg |
|
FEATURE FOR 900 gravure
|
Color number | 1 color |
| Color deck | 1 group | |
| Printing width | 900mm | |
| Film passing width | 800mm | |
| Printing length | 240-950mm | |
| Printing Speed | 10-50m/min | |
| Registration accuracy | 0.25mm | |
| Voltage | 380V, 50HZ, 3PHASE | |
| Total power | ~12 Kw | |
| Dimensions (LxWxH) | ~1000*1900*1900mm | |
| Weight | ~500Kg |
| FEATURE FOR 1100 gravure | Color number | 1 color |
| Color deck | 1 group | |
| Printing width | 1100mm | |
| Film passing width | 1000mm | |
| Printing length | 240-1050mm | |
| Printing Speed | 10-50m/min | |
| Registration accuracy | 0.25mm | |
| Voltage | 380V, 50HZ, 3PHASE | |
| Total power | ~15 Kw | |
| Dimensions (LxWxH) | ~1000*2100*1900mm | |
| Weight | ~600Kg |
