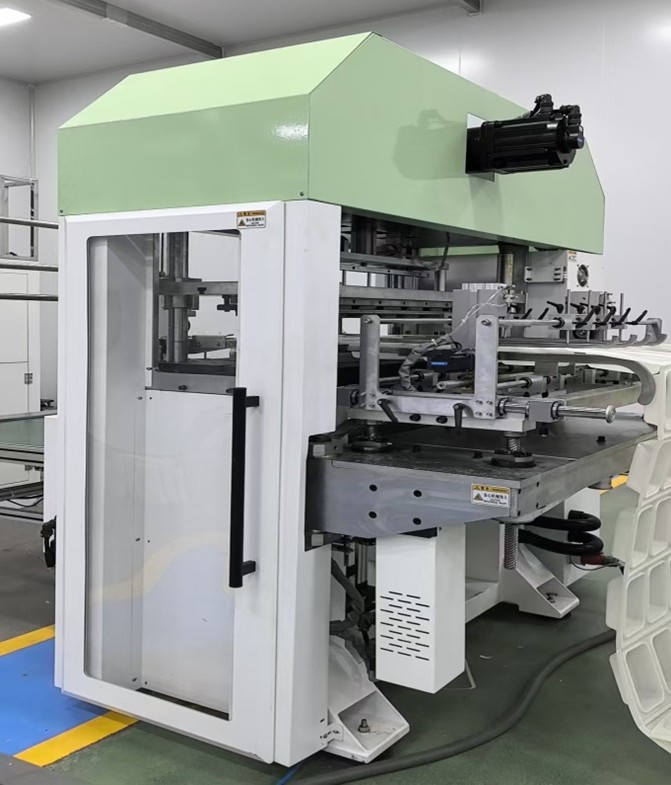

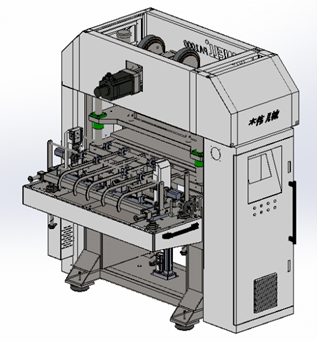

Automatic Cutting Machine
| 总功率Total Power | 18 Kw |
| 设备尺寸（长 × 宽 × 高）
Dimension of the Equipment (Length x Width x Height) |
1650*2100*2400mm |
| 重 量 Weight | 3000Kg |
| 产能Capacity | 80 Cycles / Min (Max) |
Description
Description
| 1. 冲床送料
Punch Press Feeding Unit |
|
 |
|
| 送料导向Material Feeding Guidance | 上、下不锈钢导条
Upper/Lower Stainless Steel Guide Strips |
| 送料方式（压轮+）
Feeding Method (Pressure Roller +) |
伺服减速机+电机
Servo Reducer + Motor |
| 控制Control | 伺服Servo-controlled |
| 升降移动Lifting Movement | 减速机+汇川伺服
Reducer + Inovance Servo System |
| 控制Control | 伺服Servo-controlled |
| 横向调节Lateral Adjustment | 涡轮蜗杆减速机Worm Gear Reducer |
| 控制Control | 手动Manual |

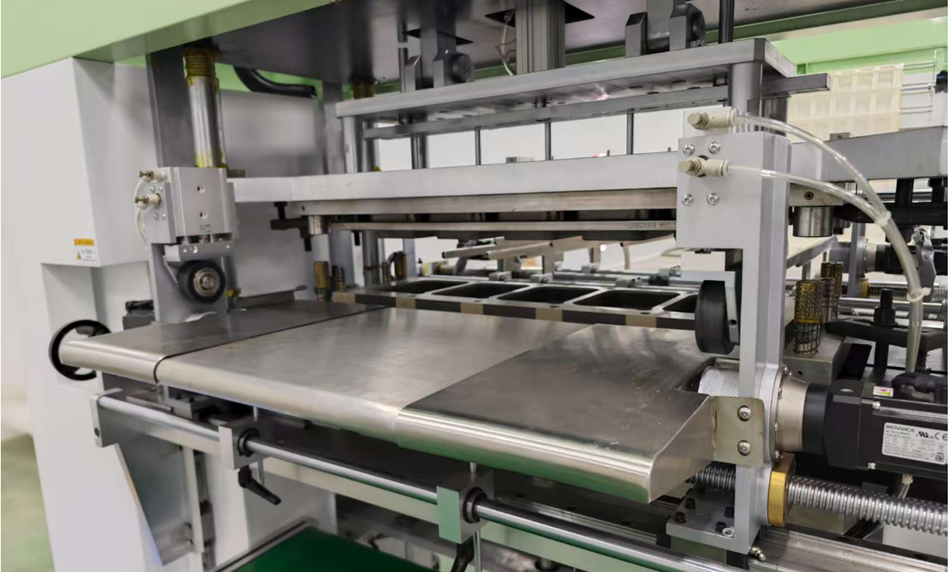

| 2. 自动冲切机
Auto-Die Cutter |
|
 |
|
| 传动Drive Mechanism | 偏心轮Eccentric Wheel |
| 形式Operation Type | 上下冲切Up-Down Punching |
| 控制Control | 伺服电机汇川Inovance Servo Motor |
| 功率Power | 5.5KW |
| 冲床本体采用特殊钢材精磨平面，五金刀模客户自己提供
The press frame is constructed with special alloy steel components featuring precision-ground working surfaces. All metal stamping dies tooling must be provided by the customer. |
|

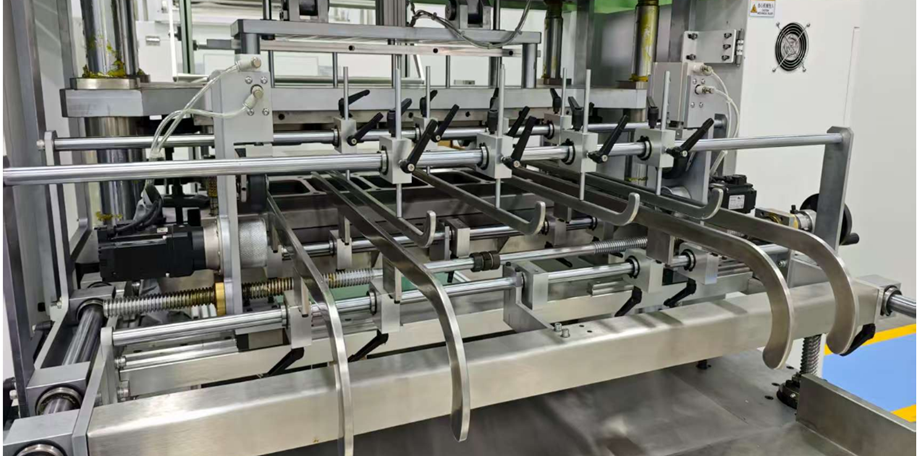

| 自动堆料Automatic Stacking | |
| 控制
Control |
伺服电机
Servo Motor |
| 品牌Brand | 汇川Inovance |
| 控制Control | 伺服驱动器
Servo Drive |
| 自动调模Automatic Mold Adjustment | |
| 减速箱Gearbox | 齿轮减速电机
Gearbox |
| 自动推料Automatic Material Pushing | |
| 气缸Cylinder | 带座气缸
Mounted Cylinder |
| 顶针Ejector Pin | |

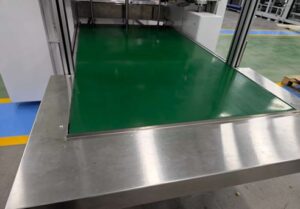

| 3. 输送机
Transmission |
|
 |
|
| 传动
Drive System |
电机
Electric Motor |
| 形式
Transmission Type |
皮带输送
Belt Conveyance |
| 控制
Control |
变频控制
VFD |
| 功率
Power |
0.12KW |
