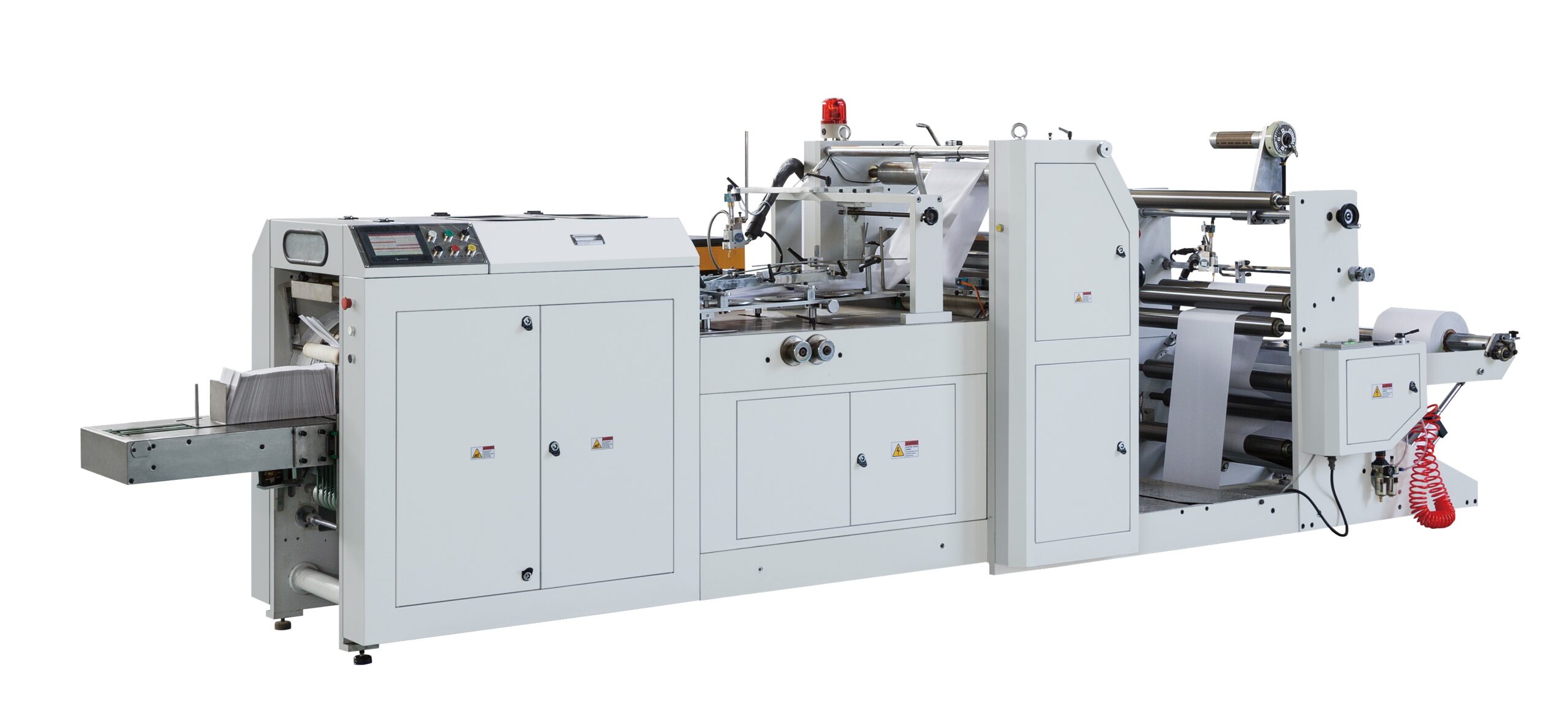

Automatic High Speed Paper Bag Making Machine with hole punched.

This machine forming the paper bag in one process from roll paper, feeding, transfer, die cutting mouth shape piercings, automatic glue, frilled M above, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.

Category:
Description

Description

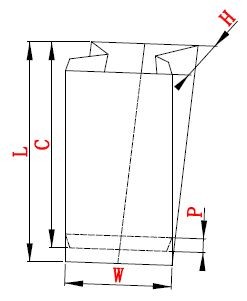

 (C) Cutting Length 100-410 mm
 (L) Bag Length 90-400 mm
 (W) Bag Width 70-220 mm
 (H) Gusset Highly 0-120 mm
 (P) Standard flap 15-18 mm
Max. Speed 700 pcs/min
Max. reel weight 400 Kg
Max.Roll Diametr 1100 mm
Reel inner diameter 76 mm
Paper specification 30-80 gsm
Web edge control system Double photoelectric automatic correction control system
Web tension control system Automatic constant tension control system
Coating way Hot-melt glue spraying system、coated with cold glue
Air pressure ≥0.12 m³, 0.4~1Mpa
Driven motor  Three servo motor
Electric 380V, 50Hz, 3 phase
Power 10 KW
Weight 4000 Kg
Overall dimension 6850×1400×1650 mm
