TWO LINES HIGH SPEED BIODEGRADABLE T-SHIRT BAG MAKING MACHINE
With independent winder and CHIP computer control system
T-shirt bags forming with biodegradable film and HDPE and LDPE
Description
Description
| Technical parameter | |
| Production Line | TWO LINES |
| Production Procedure | Film feeding → heat sealing and heat cutting → bag handle punching |
| Width of bags | 200-400mm |
| Length of bags | 280-650mm |
| Film thickness | 0.01-0.05mm
(10-50micron per layer) |
| Max. Bag making speed | 300pcs/min |
| Air compressor | 5HP |
| Main power | 14KW |
| Machine weight | 2700KG |
| Dimension: (LxWxH) | 7000x1600x1900mm |
 |

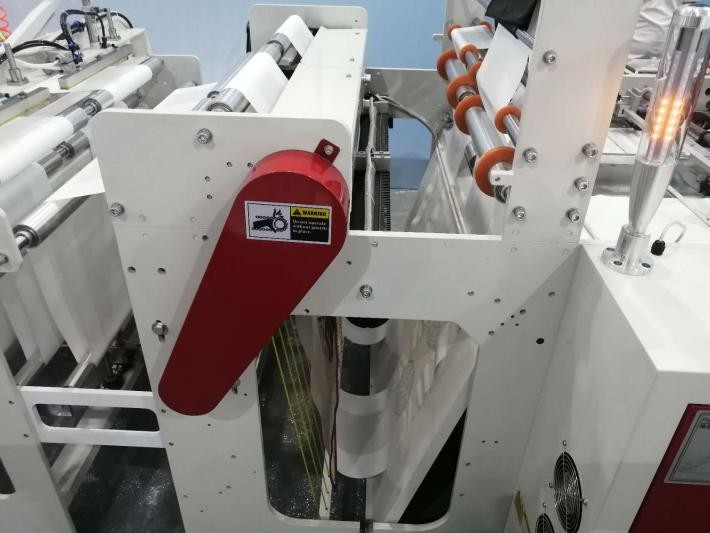

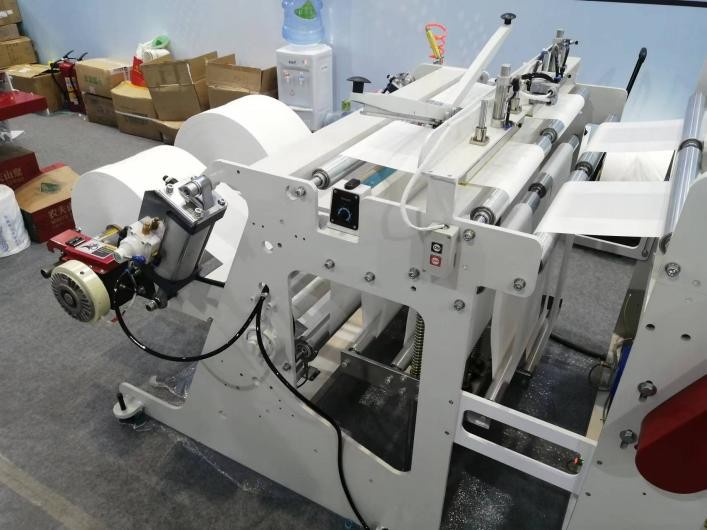

Independent unwinder
magnetic power brake Aluminum rollers buffer area Film connecting sealer |
 |
Film feeding part
Air fan blowing down Feeding sensor Bamboo curtain |
 |

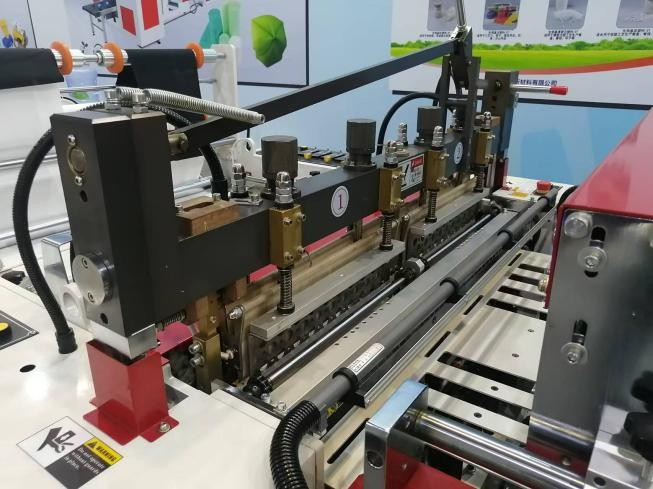

Manual sealing knife turn-over: accurate position, zigzag sealing system |
 |

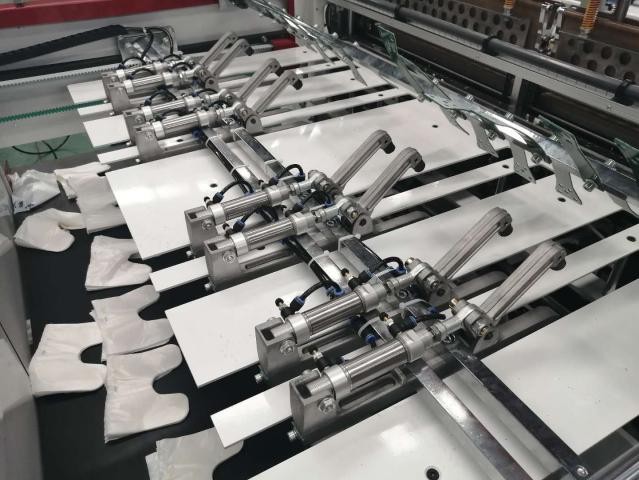

Mechanical hands: 8 sets, servo motor control its stop position |
 |

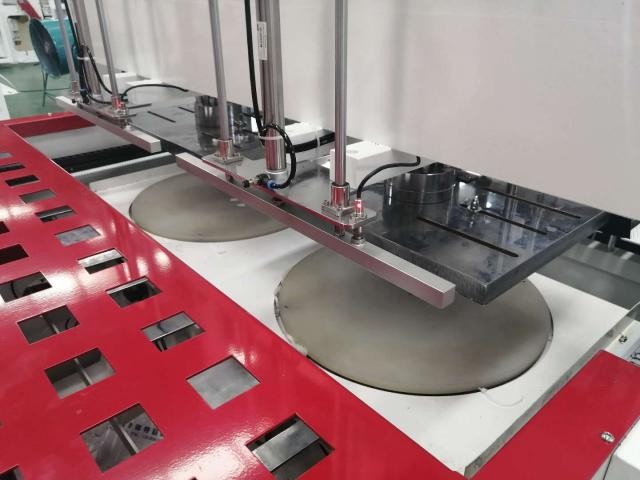

Punch Part: 5T pressure cylinder, moveable nylon plate |
 |

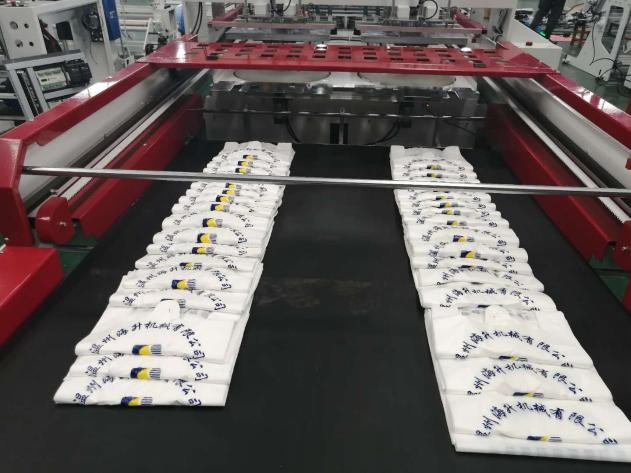

Conveyor：protection door
Bag fold function Conveyor move step by step |
